GT802
The GT802 is a high cost-effective toroidal transformer amplifier which is specifically for KTV, Party-K and high-end entertainment occasions. It is not only the best choice for sound reinforcement applications, but also brings you unparalleled sound quality enjoyment. Adopts patent high-efficiency Class ITM output stage circuit, which combines both advantages of analog timbre and efficient power supply, making you enjoy more pleasure which music brings to you. High-speed analog power supply with high-quality toroidal transformer as the core, with patented technology support which effectively reduces the internal resistance of the power supply, improves power density, and ensures stable sound quality and strong output. The GT802 amplifier is a model of innovation in the industry. Perfect combination of high transient pulse current linear power supply technology and single modulation dual channel power amplifier technology makes the sound quality more details and sound more dynamic. GT802 can present with you perfect sound quality, for exciting rock or soft lyric music.
Features
- With high quality toroidal transformer for power supply.
- High efficiency Class I™ power modules.
- Highly sensitive CMRR balanced inputs for improved noise rejection.
- Top electronic elements for a superior sonic quality.

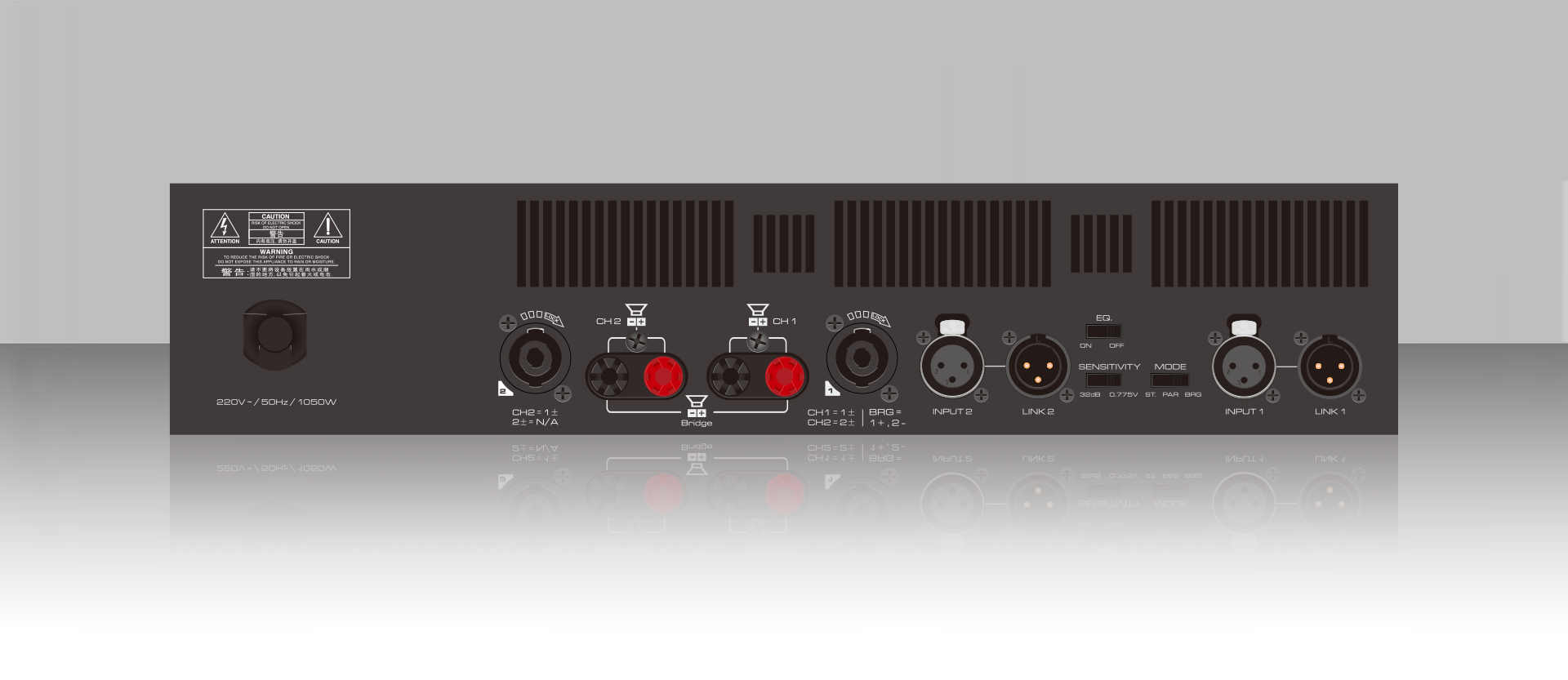

- XLR input and signal link connectors.
- Neutrik SpeakON NL4 and binding post output connectors.
- Input sensitivity selector on the back panel (0.775V / 32dB).
- Routing mode selector on the back panel (stereo / bridge / parallel).

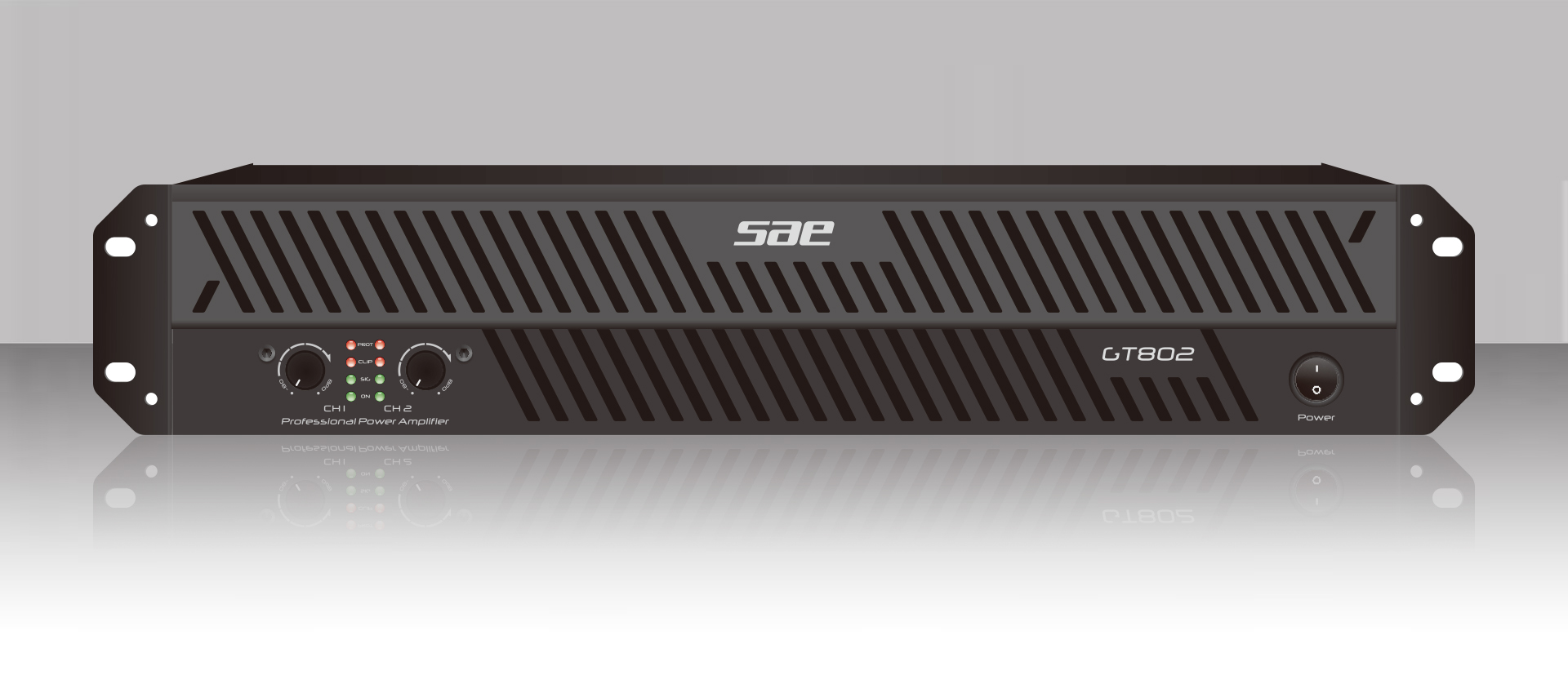

- Channel independent protection、clip warning indicators and signal presence on the front panel.
Applications
- Sound reinforcement applications with mid power density and good sounding requirements.
- Small to mid sized bar/café/lounge installation.
- Portable or rental industry PA system.
Specifications
| Model | GT802 |
| Output power | (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%) |
| 8Ω Stereo | 800W x2* |
| 4Ω Stereo | 1150W x2* |
| 2Ω Stereo | 1500W x2* |
| 8Ω Bridge | 2200W* |
| 4Ω Bridge | 2600* |
| Other specifications | |
| Frequency Response | 20Hz – 20kHz(+0/-0.6dB) |
| THD+N | ≤ 0.05% |
| S/N Rate(A) | ≥ 110dB |
| Input Sensitivity | 0.775v / 32dB |
| Input Impedance (bal/unbal) | 20kΩ / 10kΩ |
| Voltage Gain | 40.2dB |
| Cooling | Air flow from front to rear |
| Output circuitry | Class I™ |
| Dimension / Weight(The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.) | |
| Product Dimensions (mm) | W483 x H364x D88.5 |
| Packing Dimensions (mm) | W575 x H490 x D150 |
| G.W. | 17.1kg ±5% |
Remark：
1、*Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
2、**Power tested under the condition of 20ms burst, 1KHz sine wave and 1% THD.
3、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
