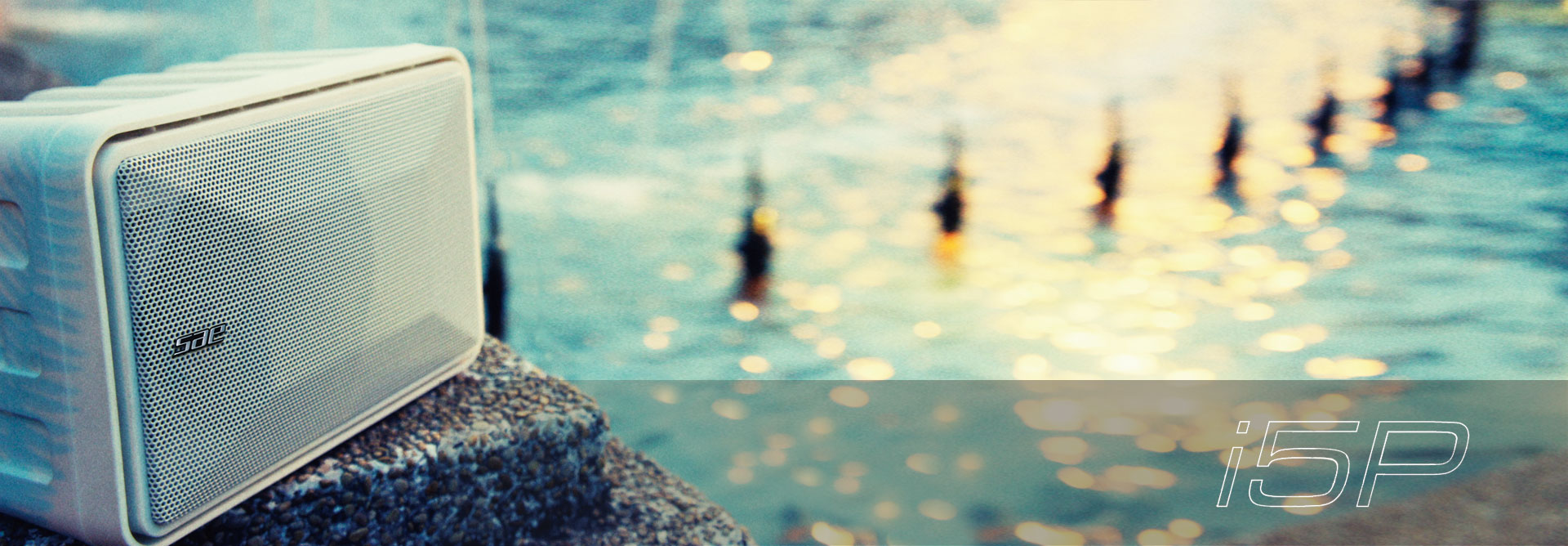

i5

i5 Datasheet

i5 series

The covenant of present classical music for you!

Features

Services for schools、 the conference room、the hotel lobby、Leisure bar、The restaurant.
In the villa’s backyard, even the bedroom.
I5 have been in the classical interpretation of the music.

Specifications

Model i5 W i5PA i5P
Speaker Drive and Driver Unit
Speaker type Full range speaker Full range speaker Full range speaker
Speaker components 1 x 5”, 1” voice coil 1 x 5”, 1” voice coil 1 x 5”, 1” voice coil
Acoustical Specifications
Frequency response* 150 Hz – 17 kHz 150 Hz – 17 kHz 150 Hz – 17 kHz
Effective frequency 100 Hz – 20 kHz 100 Hz – 20 kHz 100 Hz – 20 kHz
Impedance
Input 70 V / 100 V
Power of the Amplifier 50W
Program Power 40 W / 80 W 5 W / 10 W
Sensitivity 92 dB 92 dB 0.775V
Input Impedance 40kΩ (Balanced)
SPL 108 dB 108 dB 108 dB
Directivity H: 120º / V: 120º H: 120º / V: 120º H: 120º / V: 120º
Other Specifications
Box Material HiPS HiPS HiPS
Color Black / White Black / White Black / White
Grill Perforated aluminum alloy Perforated aluminum alloy Perforated aluminum alloy
Connections Spring Push Wire Spring Push Wire Quick Wire Connector
Dimensions and Weight
Product dimensions (W x D x H) mm 230 x 140 x 154 230 x 140 x 154 230 x 140 x 154
Packing dimensions (W x D x H) mm 400 x 250 x 285 400 x 250 x 285 400 x 250 x 285
Net Weight 1.7 kg 2.0kg 2.0kg
Gross Weight 5.0kg 5.0kg 5.0kg
AC Input Power 100-240V

Remark:
SAE reserves the right to make any changes to the product specifications without prior otice. Final specifications to be found in the user manual.
