MA series

We’ve developed the MA series amps in pursuit of the highest fidelity, power density and stability possible. Featuring our high efficiency Class I™ power modules, a premium quality heavy-duty toroidal transformer power supply and the highest grade components, the MA series power amps deliver an enormous amount of power with unmatched sonic quality. Even at continuous operation in the most critical working conditions. These amps are also equipped with SAE Audio’s robust Ultra Low-Loading Capacity technology, so the MA series is an ideal power stage for high SPL sub applications.

Features

  • Premium quality heavy-duty toroidal transformer power supply.
  • High efficiency Class I™ power modules.
  • Differential Amplifier balanced inputs for improved CMRR and noise rejection.
  • Ultra low-load output capacity.
  • High grade components for a superior sonic performance.

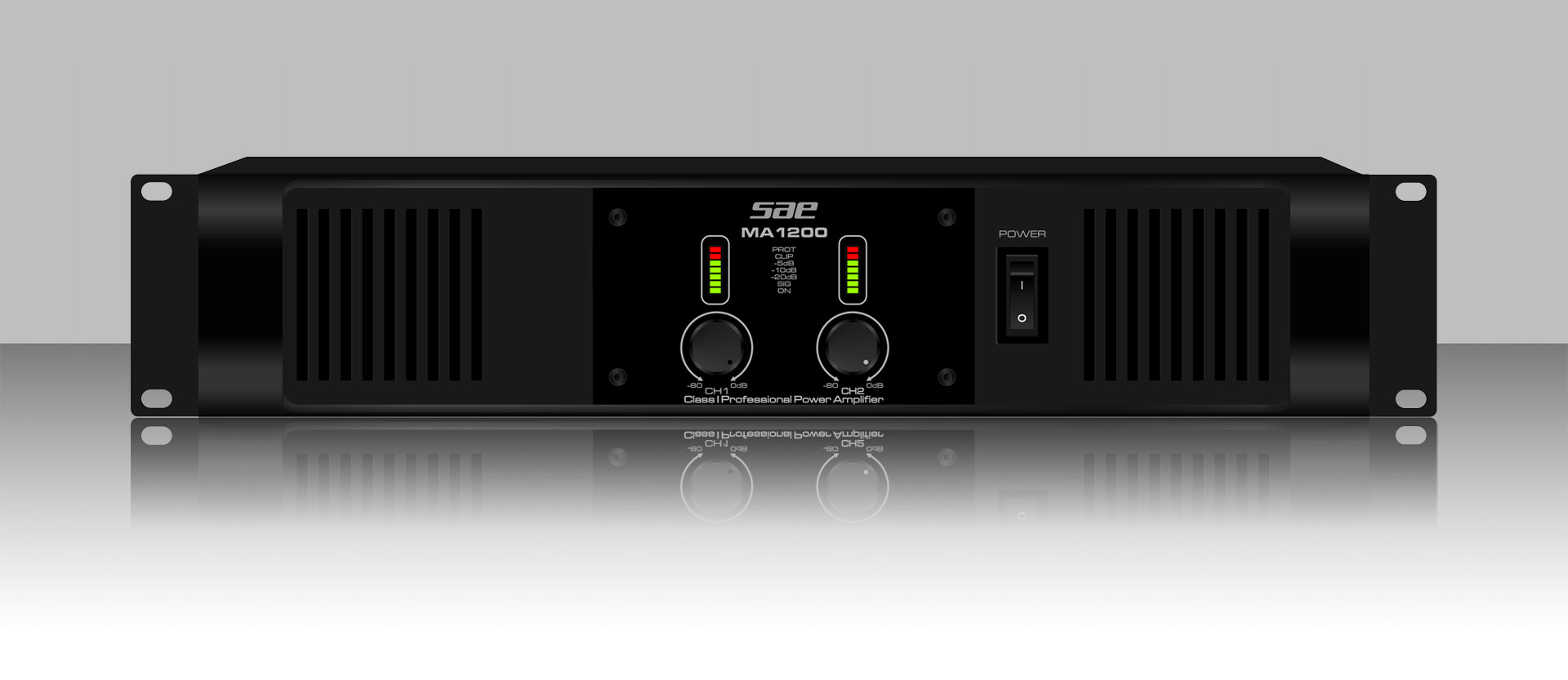

  • Backlit front panel controls.
  • Channel independent power and -3dB / -6dB / -12dB / -24dB / clip indicators on the front panel.
  • Channel independent protection warning indicator on the front panel.

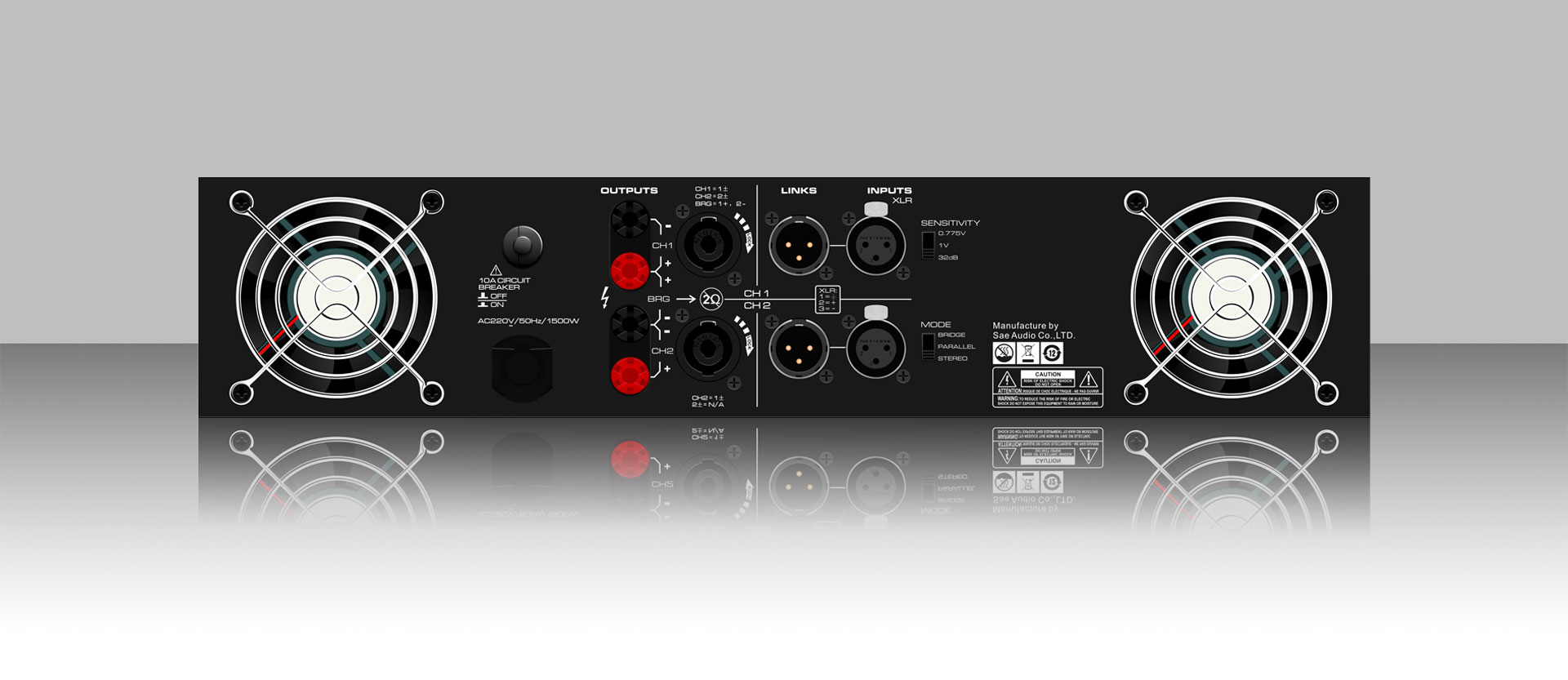

  • XLR input and signal link connectors.
  • SpeakON NL4 and binding post output connectors.
  • Input sensitivity selector on the back panel (32dB / 1v / 0.775v).
  • Routing mode selector (stereo / bridge-parallel) with status indicator on the back panel.
  • Channel independent soft-clipping selector on the back panel.

Specifications

Model MA1200 MA3600 MA4800
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo* 850W x2 1500W x2 2000W x2
4Ω Stereo** 1500W x2 2500W x2 3600W x2
2Ω Stereo** 2000W x2 3300W x2 5200W x2
8Ω Bridge** 3000W 5000W 7200W
4Ω Bridge** 4000W 6000W 8200W
Other specifications
Frequency Response 20Hz – 20kHz, +0/-0.5dB 20Hz – 20kHz, +0/-0.5dB 20Hz – 20kHz, +0/-0.5dB
THD+N < 0.2% < 0.5% < 0.5%
S/N Rate ≥ 95dB ≥ 95dB ≥ 95dB
Damping Factor > 280 > 280 > 280
Input Sensitivity 0.775v / 1v / 32dB 0.775v / 1v / 32dB 0.775v / 1v / 32dB
Input Impedance (bal/unbal) 20kΩ / 10kΩ 20kΩ / 10kΩ 20kΩ / 10kΩ
Voltage Gain 40.5dB 43dB 44.2dB
Cooling Air flow from front to rear
Dimension / Weight
Product Dimensions (mm) 483 x 493 x 89 (2U) 483 x 493 x 89 (2U) 483 x 493 x 133 (3U)

Remark:
1、*Power tested under EIA standard.
2、**Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
3、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
