MA04 series Datasheet

MA04 series

In pursuit of the best sounding quality with the highest power density and equipment stability SAE Audio has developed the MA series of power amplifiers. Featuring SAE Audio high efficiency Class I™ power modules, a premium heavy-duty toroidal transformer power supply and top audio-specific electronic elements, the excellent MA series of power amplifiers can deliver an enormous amount of power with an unmatched sonic quality even on continuous operation in the most critic working conditions. Being also equipped with SAE Audio robust Ultra Low-Loading Capacity technology, the MA series is the ideal power stage for subwoofer reinforcement applications with the highest SPL equirements.

Features

  • Premium quality heavy-duty toroidal transformer power supply.
  • High efficiency Class I™ power modules.
  • Highly sensitive CMRR balanced inputs for improved noise rejection.
  • Ultra low-load output capacity.
  • Top electronic elements for a superior sonic quality.

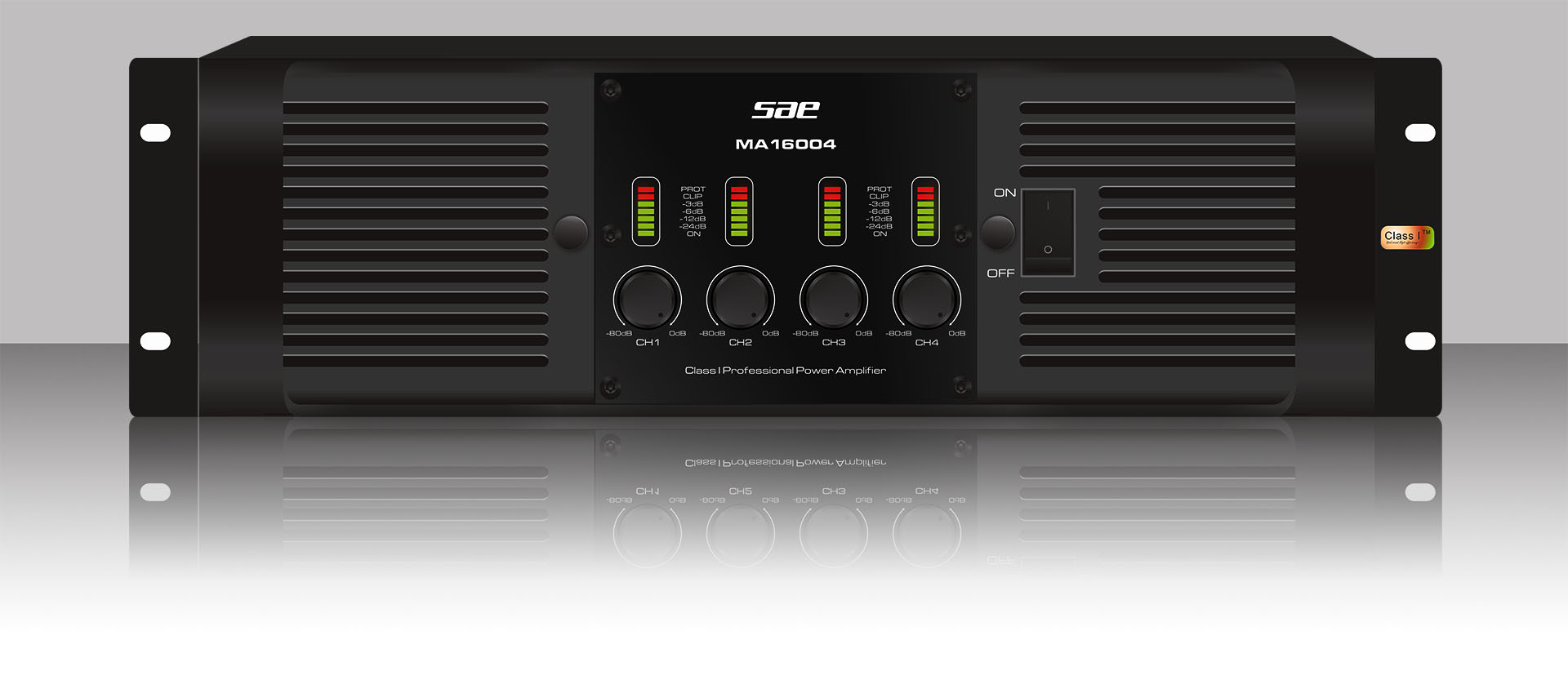

  • Backlit front panel controls.
  • Channel independent power and -5dB / -10dB / -20dB / clip indicators on the front panel.
  • Channel independent protection warning indicator on the front panel.

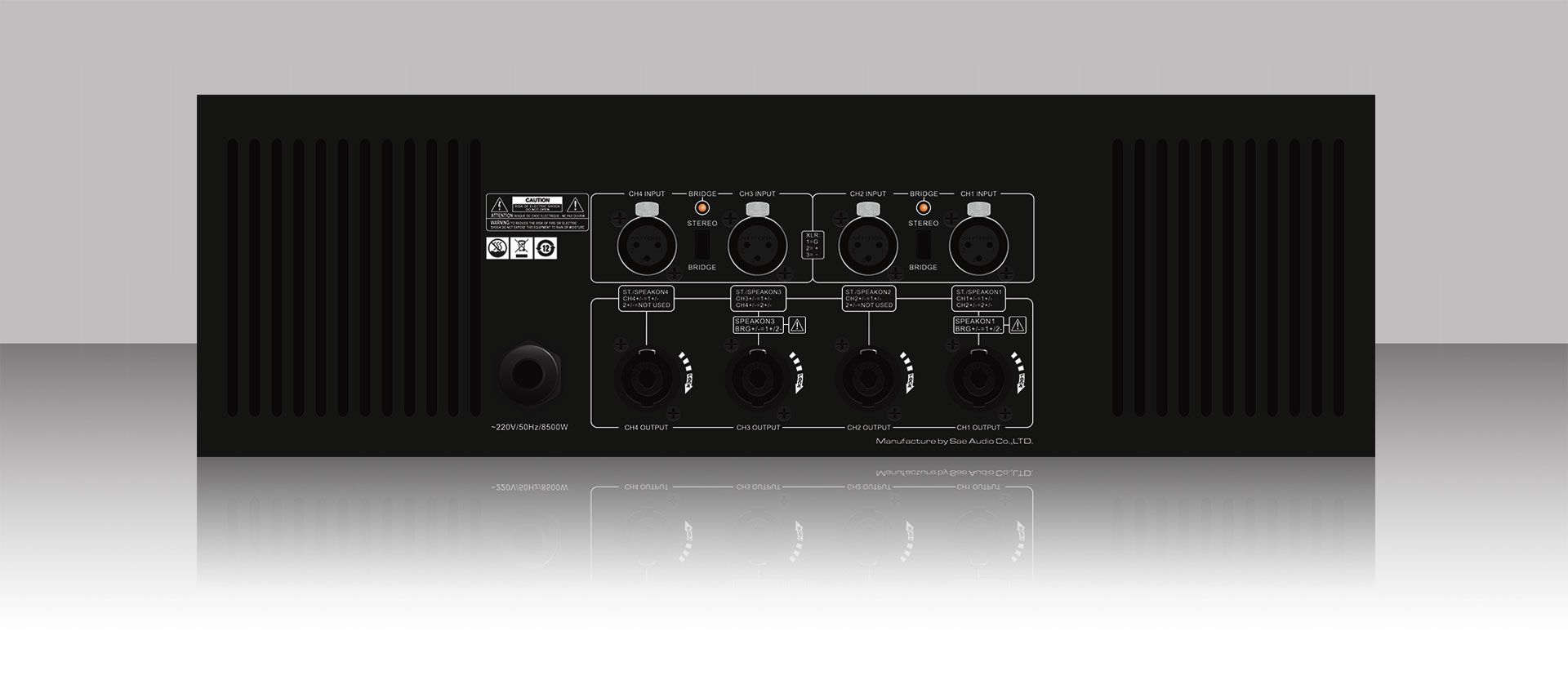

  • XLR input and signal link connectors.
  • SpeakON NL4 and binding post output connectors.
  • Input sensitivity selector on the back panel (32dB / 1v / 0.775v).
  • Routing mode selector (stereo / bridge-parallel) with status indicator on the back panel.
  • Channel independent soft-clipping selector on the back panel.

Applications

  • Mid and big sized high-end installation applications.
  • Clubs with high sound quality and power density requirements.
  • Subwoofer amplification on continuous full-power operation.

Specifications

Model MA8004 MA13004 MA16004
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo* 900W x4 1300W x4 1600W x4
4Ω Stereo** 1300W x4 2100W x4 2300W x4
2Ω Stereo** 1900W x4 2700W x4 3000W x4
8Ω Bridge** 2600W x2 4200W x2 4600W x2
4Ω Bridge** 3800W x2 5400W x2 6000W x2
Other specifications
Frequency Response 20Hz – 20kHz, +0/-0.5dB 20Hz – 20kHz, +0/-0.5dB 20Hz – 20kHz, +0/-0.5dB
THD+N < 0.5% < 0.5% < 0.5%
S/N Rate ≥ 90dB ≥ 90dB ≥ 90dB
Damping Factor > 100 > 100 > 100
Input Sensitivity 0.775v 0.775v 0.775v
Input Impedance (bal/unbal) 20kΩ / 10kΩ 20kΩ / 10kΩ 20kΩ / 10kΩ
Voltage Gain 40.8dB 42.3dB 43.2dB
Cooling Air flow from front to rear
Dimension / Weight
Product Dimensions (mm) 483 x 495 x 133 483 x 495 x 133 483 x 495 x 133
Packaging Dimensions (mm) 620 x 585 x 220 620 x 585 x 220 620 x 585 x 220
G.W. 37.5kg 40.5kg 42.5kg

Remark:
1、*Power tested under EIA standard.
2、**Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
3、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
