Power Plant series
Reinventing the concept of high-density multichannel power amplifiers, the Power Plant series by SAE Audio represent a step further on system performance for high-end installations and pro-touring audio applications. Featuring the most advanced technology on Class D power-stages, along with an internal modular structure and channel-independent SMPS power supplies, the Power Plant series brings seamless benefits delivering an unprecedented sound performance with an enormous power density reaching up to 14400W* on a single amplifier unit.
- High-end Class D power modules.
- SAE Audio next generation Alu-body design.
- Modular internal amplifier structure.
- Channel-independent Regulated Switched Mode Power Supply (R-SMPS).
- Universal mains AC voltage.

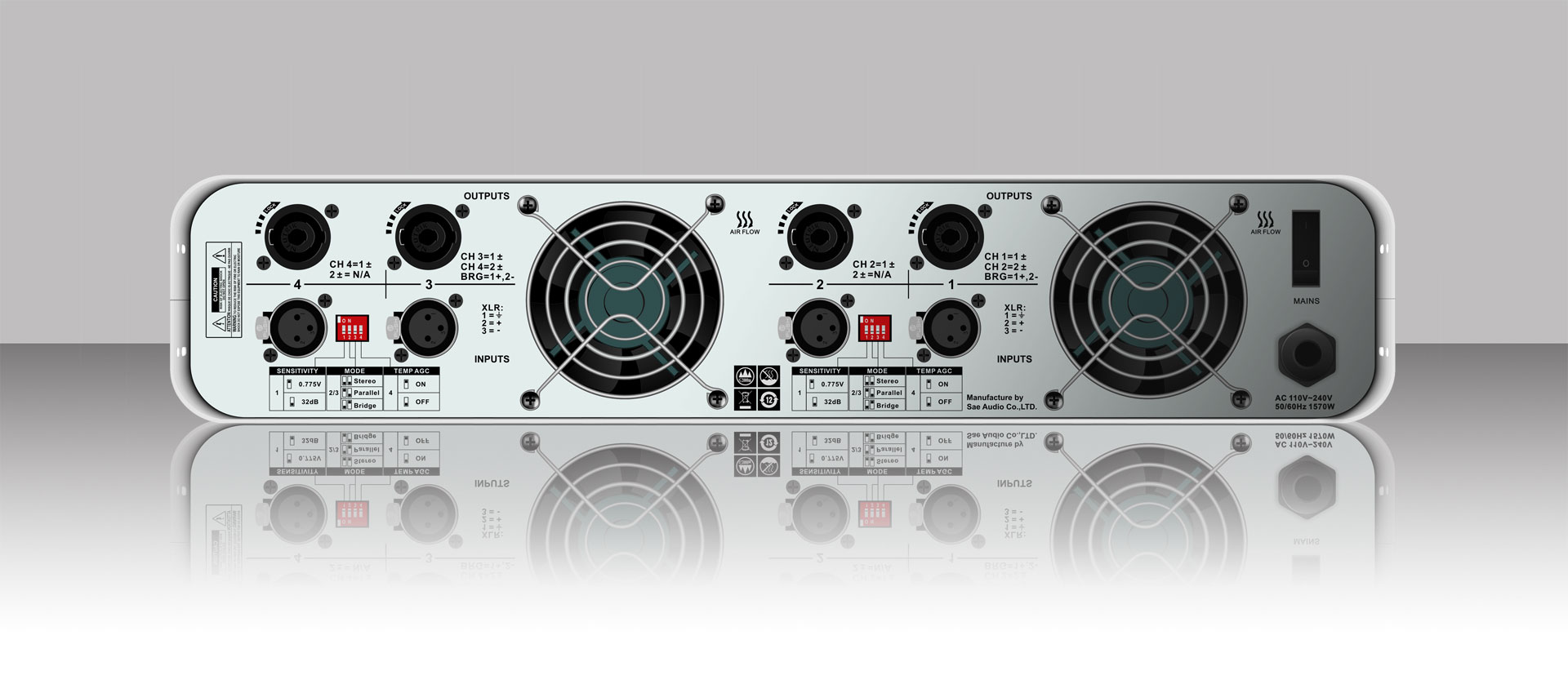

- XLR signal input connectors.
- SpeakON NL4 output connectors.
- Input sensitivity selector on the back panel (32dB / 0.775v).
- Routing mode selector on the back panel (stereo / bridge / parallel).
- Temperature Automatic Gain Control (AGC) selector on the back panel.
- Mains circuit breaker on the back panel.

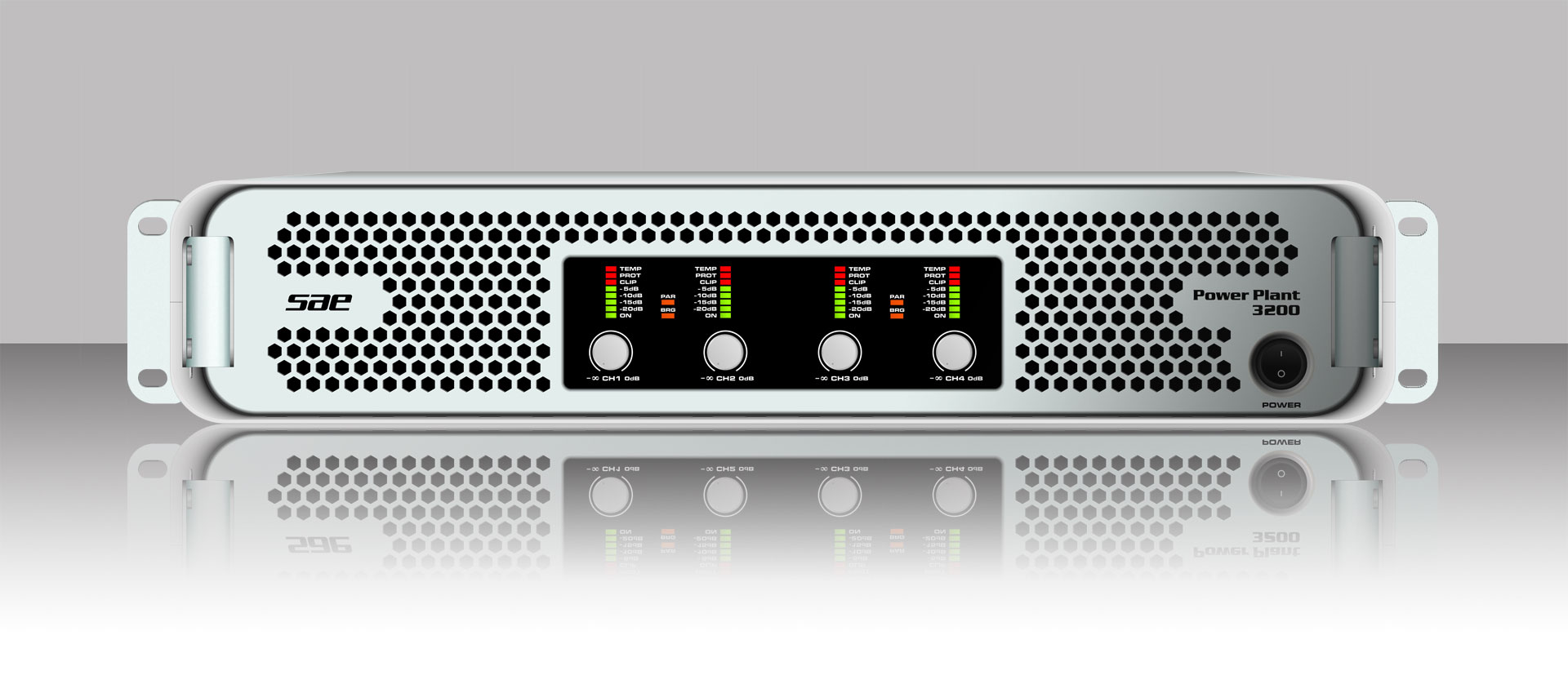

- Channel independent temperature, protection and clip warning indicators on the front panel.
- Channel independent power and -5dB / -10dB / -15dB / -20dB indicators on the front panel.
- Parallel and bridge indicators on the front panel.
- Ultra-low unit weight.
Model | Power Plant 3200 | Power Plant 10000 | Power Plant 20000 | ||
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%) | |||||
8Ω Stereo* | 400W x4 | 1500W x4 | 1500W x8 | ||
4Ω Stereo** | 750W x4 | 1800W x4 | 1800W x8 | ||
8Ω Bridge** | 1200Wx2 | ||||
4Ω Bridge** | 1400W x2 | ||||
Other specifications | |||||
Frequency Response | 20Hz – 20kHz, +0/-0.5dB | 20Hz – 20kHz, +0/-0.5dB | 20Hz – 20kHz, +0/-0.5dB | ||
THD+N | < 0.03% | < 0.03% | < 0.03% | ||
S/N Rate | ≥ 100dB | ≥ 85dB | ≥ 85dB | ||
Damping Factor | ≥ 300 | ≥ 300 | ≥ 300 | ||
Input Sensitivity | 0.775v / 32dB | 0.775v / 32dB | 0.775v / 32dB | ||
Input Impedance (bal/unbal) | 20kΩ / 10kΩ | 20kΩ / 10kΩ | 20kΩ / 10kΩ | ||
Voltage Gain | 32.3dB | 43dB | 43dB | ||
Cooling | Air flow from front to rear | Air flow from front to rear | Air flow from front to rear | ||
Dimension / Weight | |||||
Product Dimensions (mm) | 438 x 503 x 89 | 438 x 503 x 133 | 438 x 503 x 265 | ||
Packing Dimensions (mm) | 545 x 590 x 180 | 545 x 610 x 220 | 545 x 610 x 390 | ||
Weight | 13.2kg | 20.1kg | 37.2kg |
