VP Line Array

The VP Line Array is a compact and lightweight, yet extremely powerful 4-way active line array system. It’s clever design, European Class D power modules and drivers, result in outstanding performance with a surprisingly natural and powerful sound. The VP is a fully integrated line array system that absolutely excels in any mid-sized fixed or touring sound reinforcement application.

Features

  • 4-way fully integrated line array system.
  • Extremely compact and lightweight system design.
  • 100° (-6dB) horizontal and 3° (-6dB) vertical constant directivity V2208P horn.
  • V2208P – High-efficiency smart-enclosure design, 121dB maximum HF SPL (@1m),120dB maximum MF SPL (@1m).
  • V1212P – Low frequency reinforcement, 129 dB maximum SPL (@1m).
  • V1218P – Sub reinforcement, 133dB maximum SPL (@1m).
  • V2208P – Impact resistant HIPS enclosure with aluminum accessories and grille.
  • European Class D power modules.
  • High Quality European drivers.
  • Circuit breaker power switches for over-current protection.
  • Fly (up to 8x V2208P + 2x V1212P) or stack (up to 4xV2208P + 1x V1212P + 1x V1218P).
  • Custom rigging accessories and flight cases available.
  • Available in black or white to match any interior style.

Applications

  • Sound reinforcement for mid-sized venues.
  • Fixed installations in Houses of Worship, concert halls, dance venues.
  • A Full VP System configuration effortlessly handles sound reinforcement demands for audiences of 5000 indoor or 3000 outdoor.
  • Live touring system for mid-sized rooms.
  • Fantastic out-fill or delay towers for larger events.

Specifications

Model V2208P V1212P V1218P
Driver Specifications
Speaker type 2-way full-range speaker Woofer Sub-Woofer
Speaker Components HF: 1 x 1.73” voice coil, 2 x 12”, 3” voice coil 2 x 18”, 4” voice coil
1” throat
LF: 2 x 8”, 2” voice coil
Acoustic Specifications
Frequency response* 80Hz-18kHz 55Hz-3.5kHz 38Hz-250Hz
Output Power HF: 250 W (Class D) 750 W x 2 (Class D) 1500 W x 2 (Class D)
LF: 500 W (Class D)
Max. SPL (at 1m) HF: 121dB/MF: 120dB 129dB 133dB
Input Sensitivity 0.775V 0.775V 0.775V
Input Impedance 40kΩ (BAL) 40kΩ (BAL) 40kΩ (BAL)
Dispersion Angle H: 100º / V: 3º
Suggested Crossover Frequency HF: HPF / 1.8kHz – 2.5kHz LPF: 250Hz LPF: 100Hz
MF: HPF / 250Hz HPF: 100Hz HPF: 35Hz
LPF / 1.8kHz-2.5kHz
AC Input Power (±10%) 100V-240V (50 / 60Hz) 230V/50Hz 230V/50Hz
115V/60Hz 115V/60Hz
Other Specifications
Enclosure Construction Material HiPS 15mm birch plywood 18 mm birch plywood
Colors Available Black or White Black or White Black or White
Grill Perforated Aluminum Alloy Perforated steel Perforated steel
Connections PowerCon/XLR Parallel PowerCon/XLR Parallel PowerCon/XLR Parallel
Adjustable Angle Adjustable from 0-12º
on 2º steps.

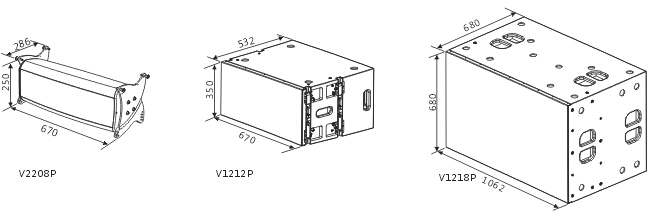

Weight and Dimensions
Product Dimensions (Specifications) 285 x 670 x 285 380 x 668 x 495 1050 x 530 x 650
Packing Dimensions (W x D x H) 370 x 760 x 420 485 x 785 x 635 1090 x 570 x 675
Net Weight 21 kg 48 kg 83 kg
Shipping Weight 23.5 kg 56 kg 91 kg

[/tab]

Remark:
SAE reserves the right to make any changes to the product specifications without prior otice. Final specifications to be found in the user manual.
