7000 series Datasheet

7000 series

The 7000 series is the most impressive SAE Audio power amplifier line within the mid-range level and affordability.Featuring a premium toroidal transformer power supply along with SAE Audio patented Class I™ power modules, the 7000 series of amplifiers provide a flat frequency response with a sweet sounding characteristic. The 7000 amplifiers are the best solution for any small and mid sized sound reinforcement installation requiring the best sounding performance.

Features

  • Premium toroidal transformer power supply.
  • Class I™ power modules.

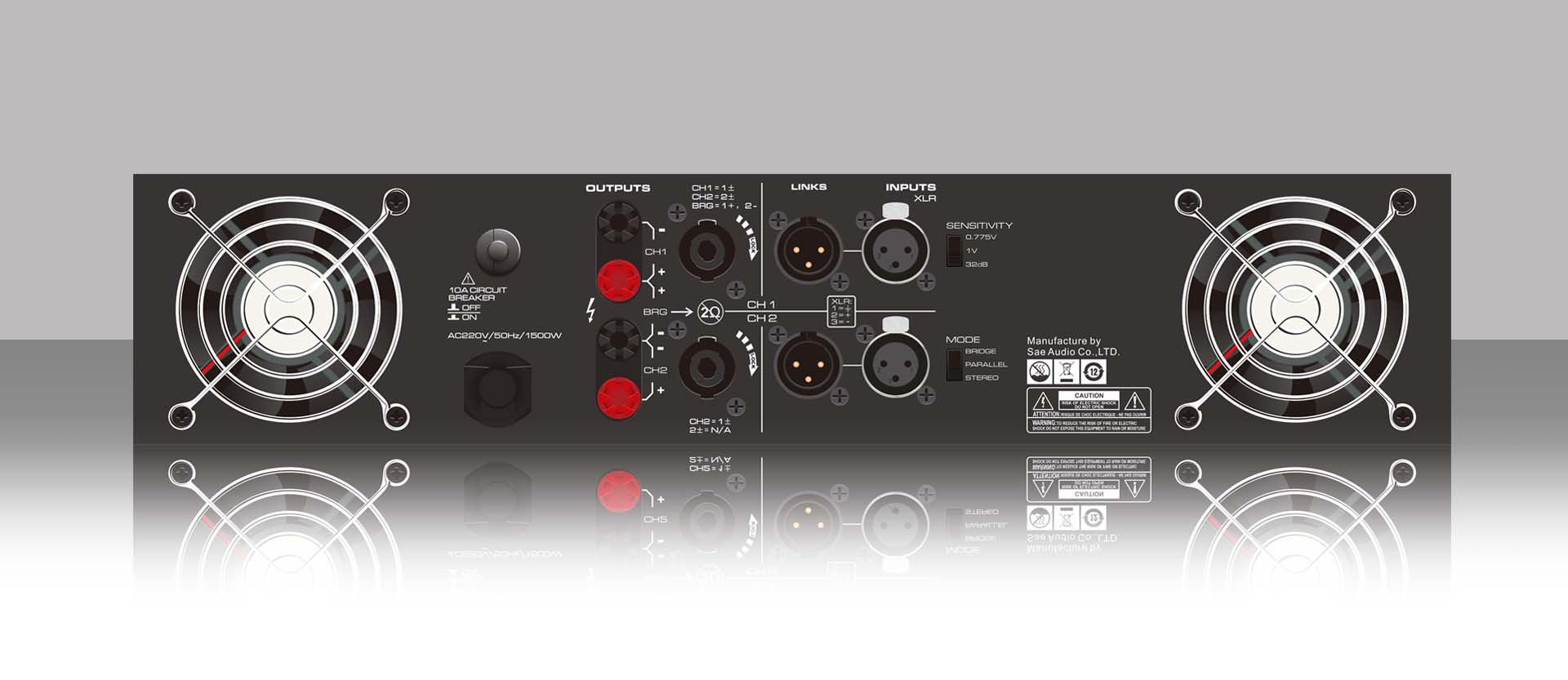

  • XLR input and signal link connectors.
  • SpeakON NL4 and binding post output connectors.
  • Routing mode selector on the back panel (stereo / bridge / parallel).
  • Input sensitivity selector on the back panel (32dB / 1v / 1.4v).
  • Mains circuit breaker on the back panel.

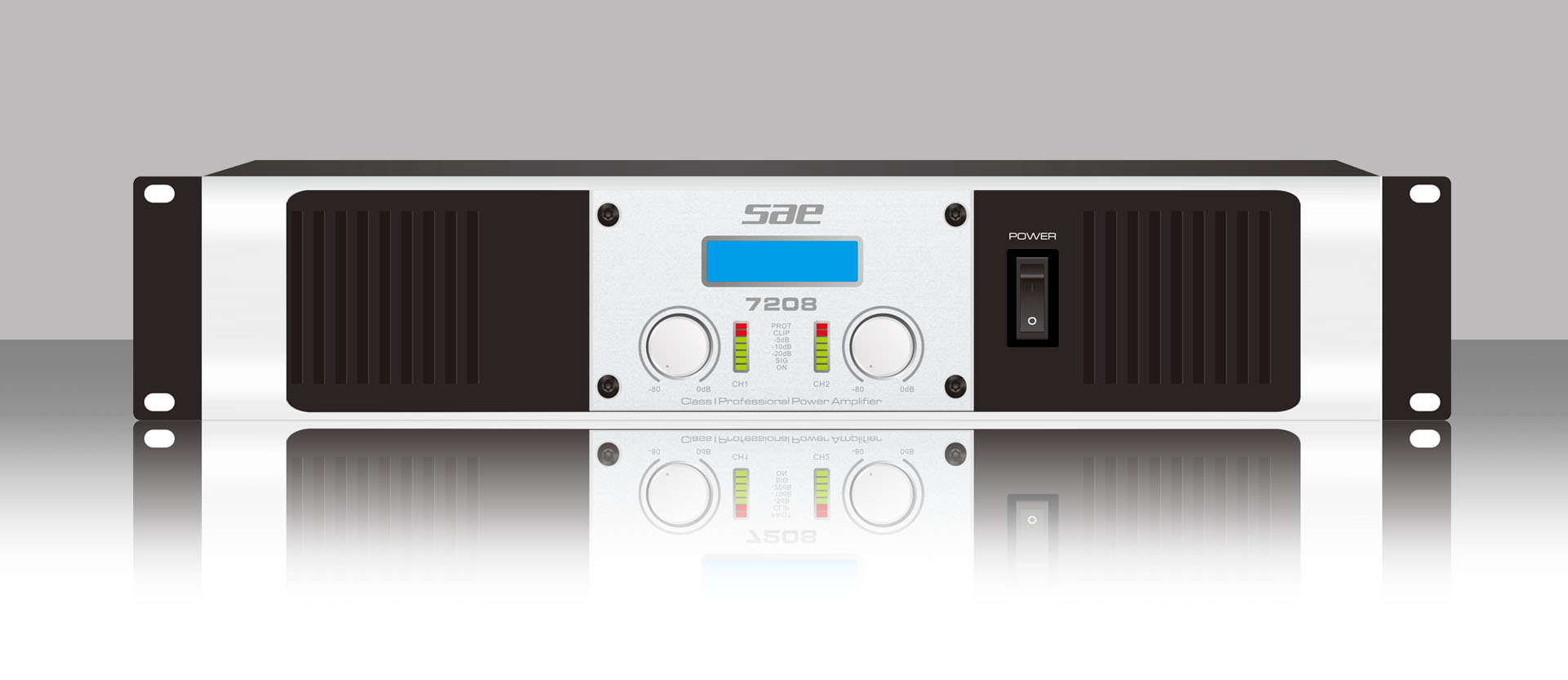

  • Channel independent protection and clip warning indicators on the front panel.
  • Channel independent power and signal presence indicators on the front panel.
  • Bridge an Parallel routing mode indicators on the front panel.
  • Sleek and stylish front panel design.
  • Very flat frequency response and sweet sounding characteristics.

Applications

  • High-end small-to-mid sized bar/café/lounge installation.
  • Basic bi-amplified sound reinforcement system applications.

Specifications

Model 7208 7215
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo* 850W x2 1500W x2
4Ω Stereo** 1500W x2 2500W x2
2Ω Stereo** 2000W x2 3300W x2
8Ω Bridge** 3000W 5000W
4Ω Bridge** 4000W 6000W
Other specifications
Frequency Response 20Hz – 20kHz,  (+0/-0.5dB) 20Hz – 20kHz,  (+0/-1dB)
THD+N < 0.02% < 0.05%
S/N Rate ≥ 85dB ≥ 85dB
Damping Factor > 280 > 280
Input Sensitivity 0.775v / 1v / 32dB 0.775v / 1v / 32dB
Input Impedance (bal/unbal) 20kΩ / 10kΩ 20kΩ / 10kΩ
Voltage Gain 40.5dB 43dB
Cooling Air flow from front to rear Air flow from front to rear
Dimension / Weight
Product Dimensions (mm) 483 x 445 x 89 483 x 495 x 133
Packaging Dimensions (mm) 595 x 565 x 170 620 x 585 x 210
G.W. 21kg 32.1kg

Remark:
1、*Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
2、**Power tested under the condition of 20ms burst, 1KHz sine wave and 1% THD.
3、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
