CT series Datasheet

CT series (New)

The CT series is the most cost-effective toroidal transformer power amplifier of SAE Audio products. CT series is the best choice for the economic application of sound reiforcement.

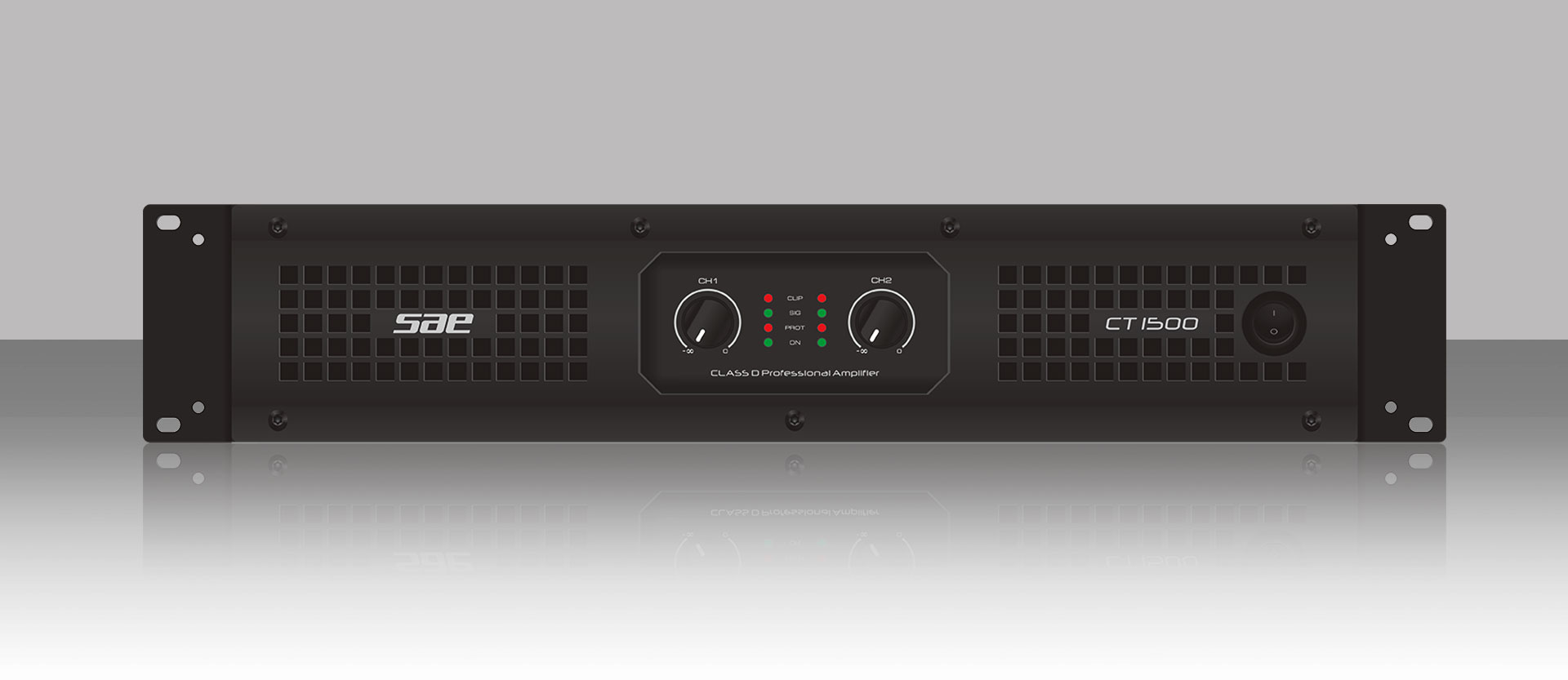

CT series has got the excellent performance and good sound quality with class D power amplifier module and toroidal transformer power supply. 9 inch depth iron chassis with stylish circular arc for the front panel design. There is LCD display on the front of CT6000, showing the working states of the amplifier.

Features

  • Premium toroidal transformer power supply.
  • Class D power modules.
  • XLR input and TRS signal link connectors.
  • SpeakON NL4 and binding post output connectors.

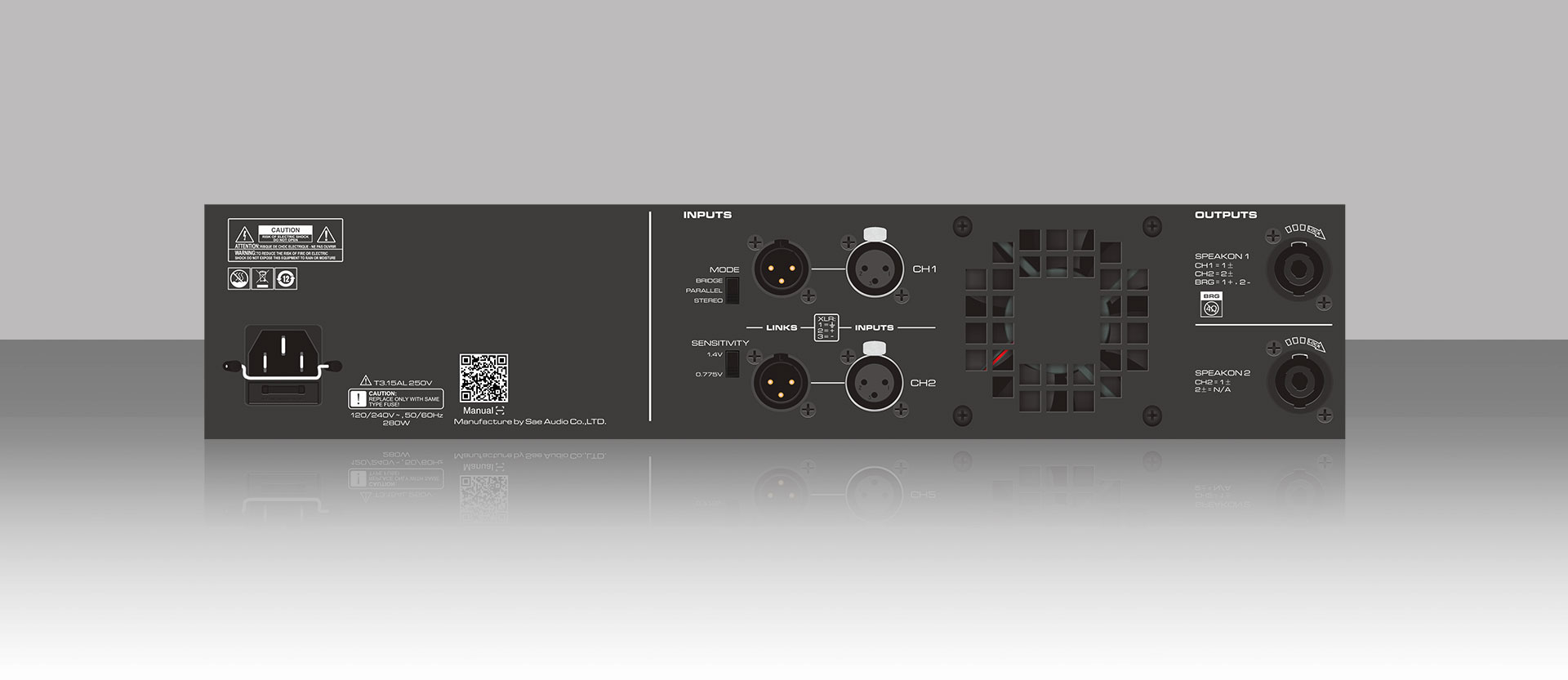

  • Routing mode selector on the back panel (stereo / bridge / parallel).
  • Input sensitivity selector on the back panel (0.775v/1.4v).
  • Channel independent protection and clip warning indicators on the front panel.
  • Channel independent power and signal presence indicators on the front panel.
  • LCD display on the front panel.(CT6000)
  • Stylish arc front panel design.

Applications

  • Small to mid sized bar/café/lounge installation.
  • Economical sound reinforcement applications.

Specifications

Model CT 1000 CT 1500 CT 3000 CT 6000 CT 8000X CT 12000X
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo* 100W x2 150W x2 300W x2 600W x2 800W x2 1200W x2
4Ω Stereo** 150W x2 250W x2 450W x2 900W x2 1200W x2 2100W x2
2Ω Bridge**         800W x2 1800W x2
8Ω Stereo**         2400W 4200W
4Ω Bridge**         1600W 3200W
Other specifications
Frequency Response (@8Ω) 20Hz – 20kHz, +0/-1dB 20Hz – 20kHz, +0/-1dB 20Hz – 20kHz, +0/-1dB 20Hz – 20kHz, +0/-1.8dB 20Hz – 20kHz, (+0/-1.8dB) 20Hz – 20kHz, (+0/-1.8dB)
THD+N ≤ 0.1% ≤ 0.1% ≤ 0.1% ≤ 0.1% ≤ 0.1% ≤ 0.1%
S/N Rate ≥ 80dB ≥ 80dB ≥ 80dB ≥ 80dB ≥ 90dB ≥ 90dB
Input sensitivity 0.775v / 1.4v 0.775v / 1.4v 0.775v / 1.4v 0.775v / 1.4v 0.775v / 1.0v/1.4v 0.775v / 1.0v/1.4v
Input Impedance (bal/unbal) 20kΩ / 10kΩ 20kΩ / 10kΩ 20kΩ / 10kΩ 20kΩ / 10kΩ 40kΩ / 18kΩ 40kΩ / 18kΩ
Voltage Gain 30.6dB 32.5dB 36dB 38.7dB 40.8dB 42.1dB
Cooling Air flow from front to rear
Protection Soft start,VHF,short circuit,over load,clip,limit,over heat,over voltage10%(CT3000/CT6000),progressive volume.
CT6000/CT8000X/CT12000X:When the protection of this product because of short circuit/over load/over voltage,the circuit will be locked, and then must restart to unlock
Dimension / Weight
Product Dimensions (mm) 483 x 254 x 89 483 x 254 x 89 483 x 254 x 89 483 x 254 x 89 483 x 419 x 89 483 x 419 x 89
Packing Dimensions (mm) 560 x 420 x 170 560 x 420 x 170 560 x 420 x 170 560 x 420 x 170 595 x 565 x 170 595 x 565 x 170
Weight 8.6 kg 9.1 kg 10.3 kg 11.4 kg 19.1 kg 22.2 kg

Remark:
1、The power is tested under the condition of 40ms burst,1kHz sine wave and 1% THD.
2、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
